S690QL1

Next > >

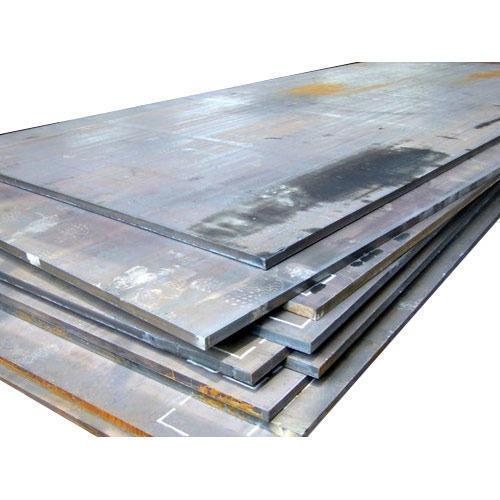

S690QL1

<< Previous

Get a Price/Quote

Send Inquiry

Product Code : 86

Price And Quantity

Minimum Order Quantity
100 Kilograms
Price Range
55.00 - 450.00 INR

Product Specifications

Product Name
Steel Products
Steel Type
Alloy Steel

Steel Product Type
Steel Plates
Grade
S690QL

Thickness
4 - 150 Millimeter (mm)
Shape
Plate

Surface
Galvanized
Application
Construction

Color
Grey

Product Description

S690QL1

S690 QL is a high yield structural steel grade produced in compliance with EN 10025:6:2004. The material is heat treated using the quench and temper process and has good bending and welding properties. Due to the materials high strength nature, using S690QL will leaner designed structures with increased payload capacity and energy efficiency. S690QL plate is an excellent material. It is of high and consistant quality through out. It's flatness is good, and so is the surface finish. And it is also easy to machine. Neither welding nor blending ever gives any problem. S690QL is the best structural steel for larger trailers.

Equivalent grades of grade S690QL

GRADE

S690QL

EN10137-2

EN10025-6:2004

A709-100

TStE690V

DILLIMAX 690

NAXTRA 70

E690T

E690TFP

S690T

FeE690VKT

2625

WELDOX 700

WEDOX 780

E690

JFE HITEN 780LE

ALFORM 700

STANDARDS

ASTM

DIN

, WNr

AFNOR/

NF A36- 204

ISO 4952

JIS

COUNTRY

EUROPE

USA

GERMANY

FRANCE

EUROPEAN (OLD)

SWEDON

INTER

JAPAN

AUSTRIA

GRADE	1.8928
STANDARDS	WERKSTOFF	GOST	IS
COUNTRY	GERMANY	RUSSIA	INDIA

APPLICATIONS OF S690QL

Heavy transportation

Machine building

Steel constructions

Lifting equipment

Fabricated bridges tower and building members

dipper sticks
Mining equipments

Penstocks
Dumper bodies

turbine scroll cases and unfired pressure vessels
Mobile cranes

bucket parts for power

components for earthmoving or transport equipments

shovels or cranes

Chemical Composition EN10025 S690QL
Content % (ladle analysis), maximum
C	Si	Mn	P	S	B	Cr	Cu	Mo
0.20	0.80	1.70	0.020	0.010	0.005	1.50	0.50	0.70
N	Nb*	Ni	Ti*	V*	Zr*
0.015	0.06	2.0	0.05	0.12	0.15

Mechanical Properties EN10025 S690QL
Plate Thickness	Yield Strength	Tensile Strength	Elongation	Impact Strength
MM	R_eH (MPa)	R_m(MPa)	A₅ % Minimum	J, Minimum
3 to 50	690	770 - 940	14	30 @ -40 C
> 50 to 100	650	760 - 930	14	30 @ -40 C
> 100 to 150	630	710 - 900	14	30 @ -40 C

V NOTCH IMPACT TESTING
Grade	Sample Orientation	@ 0C	@-20C	@-40C	@-60C
S690 QL	Longitudinal	50 J	40 J	30 J
S690 QL	Traverse	35 J	30 J	27 J

BENEFITS
Speed of construction
Cost savings in a competitive market
Long life durabilily
Health & safety
High yield, high strength plate
Excellent forming and welding properties
Ideal for weight saving, high stress applications
Suitable for crane booms, mining and earthmoving equipments
bridges, material handling, trailers and agricultural equipments

Trade Information

Payment Terms
Cheque
Supply Ability
1000 Kilograms KG Per Day

Delivery Time
3-4 Week
Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer
Main Export Market(s)
Western Europe Australia North America Eastern Europe Middle East Central America South America Asia Africa
